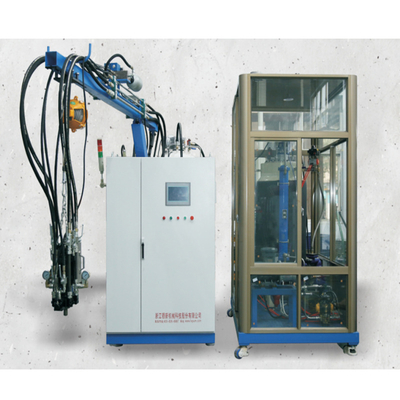

Factory CP polyurethane foaming machine /high pressure polyurethane foam machine /high pressure PU foam machine

1 Set
MOQ
Factory CP polyurethane foaming machine /high pressure polyurethane foam machine /high pressure PU foam machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Place of Origin: Zhejiang, China
Marca: LINGXIN
Condition: New
Processing Type: Foaming Machine
Machine Type: high pressure pu foam machine
Voltage: 380V 50HZ, 380V/50HZ
Dimension(L*W*H): L4200 x W2000 x H2900mm
Power (kW): 45KW
Weight (KG): 2800 KG
Warranty: 1 Year
Key Selling Points: Multifunctional
Showroom Location: None
Applicable Industries: Manufacturing Plant
Certificazione: ce, ISO 9001:2015
After-sales Service Provided: Video technical support, Free spare parts, Online support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: None
Machine type: PU Foaming Machine
Power: 45kw
Raw material: isocyanate and polyol(ISO and POLY)
Output: 10-5000g/s
machine type: high pressure
foaming agent: cyclopentane
Weight: 2800KG
Informazioni di base
Place of Origin: Zhejiang, China
Marca: LINGXIN
Certificazione: ce, ISO 9001:2015
Termini di pagamento e spedizione
Packaging Details: export standard packing /20GP container /40HQ Container
Supply Ability: 20 Set/Sets per Month high pressure polyurethane pu machine
Descrizione di prodotto

Technical Parameter:
Injection output: 2-5000g/s
Material tank volume: 30L-500L
Mixing ratio range: 100:28~48~150
Mixing head: 2800-5000rpm, forced dynamic mixing
Compressed air needed: dry, oil free, P:0.6-0.8MPa Q:600NL/min(customer-owned)
Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)
Temperature control system: heat:2×3KW
Input power: three-phase five-wire 380V 50HZ Other power customizable
Total power: 35-70kw
Color( customizable): White/Red/Blue
Weight: 2000Kg-2500Kg
Dimension: 4200(L)*2000(W)*2900(H)mm

Equipment Overview:
PU foaming machines have wide application in the market, which have features of economy and convenient operation and maintenance,etc. The machines can be customized according to customers' requirement for various output and mixing ratio.

Main Description :
(1) -- With safety protection by anti riot glass and aluminum alloy arround the machine.
(2) -- There is a draining wind device on the safety cover;with safe wind exhaust system.
(3) -- Have wind pressure switch to ensure the good working of the fans.
(4) -- Cyclopentane gas detector is installed in the enclosure and connects with the control system.
(5) -- With explosion-proof pressure sensor for high and low pressure exchange system.
(6) -- Explosion-proof mixing motors for tank A & explosion-proof deceleration motor for metering pump.
(7) -- Pneumatic components also use explosion-proof type, and have good anti static and grounding measures.
(8) -- Automatic material feeding system is adopted with multi-point monitoring for the material level,avoid overflowing of raw material.
(9) -- Pneumatic controller for nitrogen gas at the mixing head.

Our company:

Company Information

Certificate

Part of PU Products can be made by our machines:

Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
