Plastic Processed:
PP, HDPE, PA, PE, PE/PP
Condition:
New
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
370 mm mm
Distance between Tie Bars(Height)(mm):
370 mm mm
Ejector Stroke(mm):
120 mm mm
Ejector Force(kN):
38 kN
Theoretical Shot Volume(cm³):
193.2 cm³
Injection Rate (g/s):
104 g/s
Machine Type:
Hydraulic
Injection Weight (g):
176 g g
Screw diameter (mm):
38 mm mm
Distance between Tie Bars:
370*370mm
Weight (KG):
3400
Type:
Tube Head Injection
Place of Origin:
Zhejiang, China
Open Stroke(mm):
350 mm mm
Model Number:
HCS110
Marca:
HAICHEN
Power (kW):
5.5 kW
Warranty:
1 Year
Key Selling Points:
Competitive Price
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox, Screw

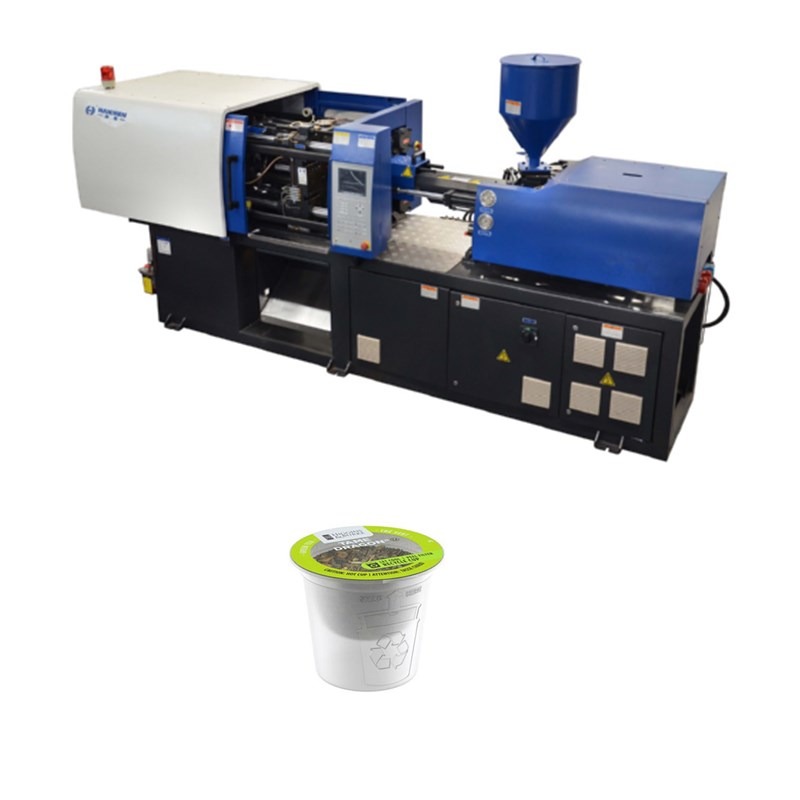

Product name:
Plastic Injection Moulding Machine
MAX mold height:
380
Min,mold height:
150
max.pump pressure:
16
Heating power:
6
Oiltank cubage:
200
Injection pressure:
184
Used for:
Plasic Products
Color:
Blue \ White
Application:
Inserting Plastic Products
Plastic Type:
Thermoplastic
Clamping Force (kN):
1100 kN
Automatic:
Yes
After-sales Service Provided:
Video technical support, Online support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Turkey
Certificazione:
ISO9001/CE
