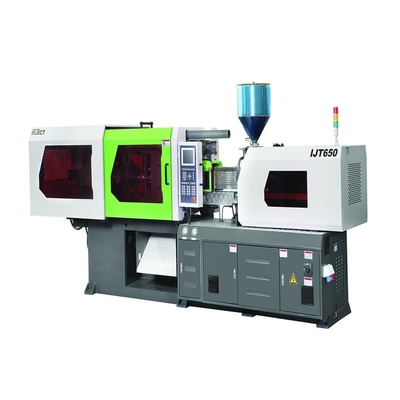

Horizontal soap making machine extrusion blow molding machine Greenst IJT-650SD110 opening stroke900mm

1.0 Units
MOQ
Horizontal soap making machine extrusion blow molding machine Greenst IJT-650SD110 opening stroke900mm
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Plastic Processed: PP, PC, ABS, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 910mm
Distance between Tie Bars(Height)(mm): 910mm
Ejector Stroke(mm): 260 mm
Ejector Force(kN): 175 kN
Theoretical Shot Volume(cm³): 4209 cm³
Injection Rate (g/s): 895 g/s
Machine Type: Hydraulic
Injection Weight (g): 3788 g
Screw diameter (mm): 110 mm
Distance between Tie Bars: 910x910
Weight (KG): 360000
Type: Preform Injection
Place of Origin: Zhejiang, China
Open Stroke(mm): 900 mm
Model Number: IJT650
Marca: INJECT
Power (kW): 59 kW
Warranty: 1 Year, 12months
Key Selling Points: Competitive Price
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC
Opening Stroke: 900mm
COLOR: white ,green or customized
Product Keywords: Mobile Phone Motherboard Parts
Product name: Plastic Injection Moulding Machine
Operating Language: Chinese and English
After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Usage: Make Small Plastic Products
Plastic Type: Thermoplastic
Automatic: yes
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines
Clamping Force (kN): 6500 kN
Certificazione: CE and ISO9000
Informazioni di base
Place of Origin: Zhejiang, China
Marca: INJECT
Certificazione: CE and ISO9000
Model Number: IJT650
Termini di pagamento e spedizione
Packaging Details: STANDARD EXPORT PACKAGE or customized
Supply Ability: 80 Unit/Units per Month extrusion blow molding machine
Descrizione di prodotto

                                             Item:Greenst IJT-650SD  opening stroke900mm



                INJECT standard injection molding machine





Technical Data



IJT-650

Injection Unit

Screw Diameter

mm

80

90

100

110

Screw L/D Ratio

L/D

  24.8

   22

   19.8

18

Shot Volume

cm³

  2226

  2818

  3479

4209

Injection Weight(PS)

g

  2004

  2536

  3131

3788

Injection Pressure

Mpa

  196

  154

  125

103

Injection Rate

cm³/s

  473

  600

  740

895

Plasticizing Capacity

g/s

  68.8

  94.9

  124.3

159

Screw Speed

rpm

0-120

Clamping Unit

Clamping Tonnage

KN

6500

Toggle Stroke

mm

900

Space Between Tie-bars

mm

910x910

Max. Mold Height

mm

900

Min. Mold Height

mm

400

Ejector Stroke

mm

260

Ejector Tonnage

KN

175

Ejector Number

Piece

17

Others

Max. Pump Pressure

Mpa

14

Motor Power

KW

37+22

Heater Power

KW

46

Machine Dimension

m

10x2.2x2.8

Machine Weight

ton

36

Oil Tank Capacity

L

1480


Company Information

INJECT Introduction:

Ningbo Greenst Machinery Co., Ltd is a professional manufacture of plastic injection molding machine ranging from 50tons to 1600tons of mould locking force(50g to 10000g of injection weight), which are mainly for foreign customers and domestic middle and high-end customers. Using new technology and good units, we make machine with C N C high-precision machine, assemble them under ISO quality process. We supply quality machines and turnkey project. We can make energy saving series machines, high speed machines, P E T bottle machines, P V C fitting machines, also give high- quality mold, auxiliary equipment and in–mold-labeling for bucket, cup, and bowl and so on. Our products are sold all over the world.  Now we are looking for agent, sales and service team, we warmly welcome you to join us!

INJECT Products:

♦ Servo power saving machine

♦ Standard injection molding machine

♦ Variable pump machine

♦ High speed injection Molding Machine

♦ PET injction machine

♦ PVC injction machine thanks for visit



INJECT Descriptionpp cosmetic plastic box injection moulding machine from GREENST

INJECT Exihibition:



Saudi 4P from 17 - 20 February 2014 welcome to visit ictures









Certificates









FAQ

 Q: Where have you  exported your machines?

A: We have already exported to more than 30 countries in Asia,Middle east ,Africa, South Kerea and Etc.

Q:Can you arrange the visit to your machine user?

A: Yes.

Q:Can you customize the machine according to our requirement ?

A: Yes.

Q:How about your after-sales service?

A:We will reply you within 24 hours by email or phone . If we have local agent ,we will ask them to your site asap to fix problems .

Q:How about staff training ?

A:Usually ,we will train your staff during the machine installation on your site . you are also welcomed to send your staff  trained in our factory .
