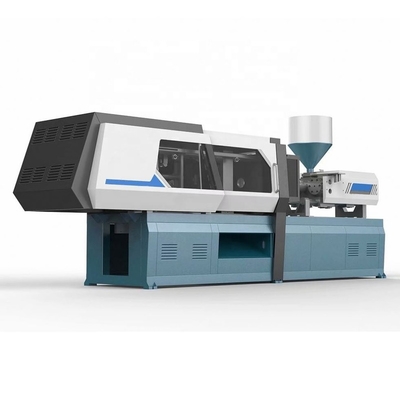

Horizontal Hot Selling Used Plastic Making Manufacturers Blow Molding Injection Molding Machines For Making Plastic Products

1.0 set
MOQ
Horizontal Hot Selling Used Plastic Making Manufacturers Blow Molding Injection Molding Machines For Making Plastic Products
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Plastic Processed: PP, PC, ABS, PVC, PE/PP
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 530mm
Distance between Tie Bars(Height)(mm): 530mm
Mold Height(mm): 180 - 550 mm
Ejector Stroke(mm): 150 mm
Ejector Force(kN): 49 kN
Theoretical Shot Volume(cm³): 644.4 cm³
Injection Rate (g/s): 231.5 g/s
Machine Type: Hybrid
Injection Weight (g): 611.3 g
Screw Speed (rpm): 1 - 195 rpm
Screw diameter (mm): 60 mm
Screw L/D Ratio: 20
Distance between Tie Bars: 530x530 mm
Weight (KG): 6500
Place of Origin: Shanghai, China
Open Stroke(mm): 490 mm
Model Number: YYIM-025
Marca: ZETAR
Power (kW): 41.8 kW
Warranty: 1 Year
Key Selling Points: cost-effective
Applicable Industries: Hotels, Garment Shops
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type: Other
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: Other
Core Components: Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox, Screw
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
After Warranty Service: Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, Italy, Germany, Viet Nam, Brazil, Indonesia, Pakistan, Mexico, Thailand, Japan, Australia, Morocco, Argentina, South Korea, Sri Lanka, Romania, Bangladesh, Kyrgyzstan, Nigeria
Informazioni di base
Place of Origin: Shanghai, China
Marca: ZETAR
Model Number: YYIM-025
Termini di pagamento e spedizione
Packaging Details: Plastic molds packing methods: 1-Painted with anticorrosive paint to protect the mold from rust due to the heavy humidity on sea 2-Wrapped with plastic film to protect the mold from rust due to the heavy humidity on sea 3-Load on very strong durable polywo
Supply Ability: 10000 Piece/Pieces per Week
Descrizione di prodotto
Product Description
Company Profile
specification
DESCRIPTION
UNIT
DATA





Injection unit
Shot volume
cm3
664.4
Shot weight (PS)
g
611.3
oz
21.6
Screw diameter
mm
60
Injection pressure
Mpa
134.8
Injection rate
g/s
231.5
Screw L:D ratio
20:01
Max. injection speed
mm/s
89
Screw stroke
mm
235
Screw speed(stepless)
r/min
0-194




Clamping unit
Clamping force
kN
2000
Opening stroke
mm
490
Space between bars
mm*mm
530x530
Max. Daylight
mm
1040
Mold thickness(Min.Max)
mm
180-550
Ejector stroke
mm
150
Number of ejector pin hole
5
Ejector force
kN
49


Power unit
Max. system pressure
Mpa
17.5
Standard servo Pump
kw
25
Heating power
kw
14.4
Number of temp control zones
5


General
Dry cycle time
s
2.7
Oil tank capacity
L
255
Machine dimensions(LxWxH)
m*m*m
5.76x1.45x2.21
Machine weight
kg
6500
Satisfied customer
Tom from US like
This US customer Tom Smith,their company is our first US customer who making tripod products.
We made a set of tripod for them and here is there comments:
Hello Ella,
I got the cases and I am very proud. I wouldn't change a thing! You guys did a wonderful job and please relay that to Zetar team.
I will be letting you know here shortly the dimensions of the next case. It is great having a business relationship with you guys.
I hope you and your family are doing well and that the weather is beautiful.
Tom
Chirs from Canada prefer to work with Zetar
Chris from Canada come to visit us in 2017,bring his two molds made in Shenzhen to us for mass production.They under big pressure
from kickstater backers,while the factory made molds for them can't do production and molds molding delayed a lot already.
Working with us,Chirs get big success with his kickstarter campaign,and now they are making new version and we already involved in
new product design.
Thomas from NL speak highly of Zetar


Thomas Kuijper from Netherland working in battery industry,we have working with them since 2013 for their battery housings.

Hello Tina,
Cargo arrived.I am happy for all these smooth work.Your team is growing so fast and i like their communication.I believe we soon
will have more works for Zetar. I hope you and your family are doing well
Thomas
Logistics/Finalization
FAQ
Q1:who are we?
A:We are based in Shanghai, China, start from 2014,sell to North America(31.00%),Western Europe(25.00%),Eastern Europe(11.00%),Oceania(10.00%),Southern Europe(9.00%),Africa(6.00%),Mid East(4.00%),South America(3.00%),Domestic Market(00.00%). There are total about 51-100 people in our office.
Q2:Is there complete machine include mould and other auxiliary equipment ?
A:Yes ,what we are provide is the complete A-Z solution line.
Q3: Could you send your engineer to my country, to start the machine?
A3: Surely, we have experience technical engineer for oversea service, they would help you install machine, training your workers.
Q4: Can you help us with the shipment of this machine ?
A4: We have our special shipment company which already cooperate for long time, we will give you the best price, fast delivery.
Q5: why should you buy from us not from other suppliers? A5:1.8 Professinal engineers,all design questions can be answered within 24 hours. 2.20 more good English speaker sales,give you smooth communication 3.Good service :24*7 work,whenever you need,we are available 4.wide range of sources.
Q6: what services can we provide? A6:Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English
