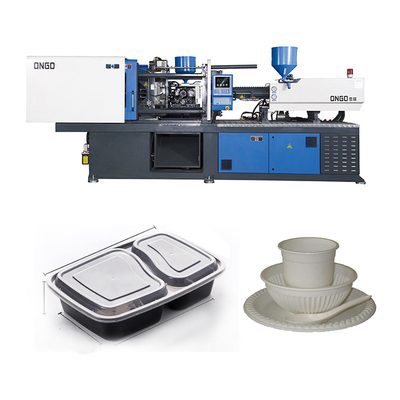

360 Ton Horizontal Plastic Disposable Box Making Machine Lunch Pen Plastic Injection Molding Machine

1.0 Sets
MOQ
360 Ton Horizontal Plastic Disposable Box Making Machine Lunch Pen Plastic Injection Molding Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Plastic Processed: PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid, Other
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 670mm
Distance between Tie Bars(Height)(mm): 670mm
Mold Height(mm): 250 - 720 mm
Ejector Stroke(mm): 160 mm
Ejector Force(kN): 70 kN
Theoretical Shot Volume(cm³): 1480 cm³
Injection Rate (g/s): 422 g/s
Machine Type: Hybrid
Injection Weight (g): 1349 g
Screw Speed (rpm): 185 - 190 rpm
Screw diameter (mm): 75 mm
Distance between Tie Bars: 670*670mm
Weight (KG): 12500 kg
Type: Tube Shoulder Injection
Place of Origin: China
Open Stroke(mm): 705 mm
Model Number: Z360
Marca: ONGO
Power (kW): 61.6 kW
Warranty: 2 years
Key Selling Points: Multifunctional
Applicable Industries: Plastic Injection Molding Machine
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Other
Product name: 360T Injection Molding Machine
Injection Pressure: 1012Mpa
Screw Speed: 190Rpm
Max.Mould Height: 720mm
Min.Mould Height: 250mm
Oiltank Cubage: 620L
Machine Dimension(L*W*H): 7.21*1.9*2.34m
Plastic Type: Thermoplastic
Automatic: Yes
Clamping Force (kN): 3600 kN
Informazioni di base
Place of Origin: China
Marca: ONGO
Model Number: Z360
Termini di pagamento e spedizione
Packaging Details: Accept any packaging
Supply Ability: 200 Set/Sets per Month
Descrizione di prodotto
Product Paramenters
ITEM
Unit
INJECTIONUNIT
A
B
C
Screw Diameter
mm
65
70
775
Shot Volume(Theoretical)
cm^3
1112
1289
1480
Injection Weight(Ps)
g
1012
1175
1349
Injection Rate
g/s
337
368
422
Injection Pressure
MPa
195
170
148
Screw Speed
rpm
190
190
190
CLAMPING UNIT
Clamping Force
kN
3600
Open Stroke
mm
660
Space Between Tie Bars(W*H)
mm
670*670
Max Mould Height
mm
720
Min Mould Height
mm
250
Ejector Stroke
mm
160
Ejector Force
kN
70
OTHERS

Max.Pump Pressure
MPa
16
Pump Motor Power(Servo)
Kw
56
Heating Power
Kw
26.3
Machine Dimension(L*W*H)
M
7.21*1.9*2.34
Oiltank Cubage
L
620
Machine Weight
T
12.5
Products Description
Our products can produce any parts, if you have any questions, please click to contact us
Our services
Company Profile
Q1. What's our minimum order quantity ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
Q2. What detailed information do we need if you want to order our product ?
Product pictures with measurements or drawings, sample best, product weight, material, cavities
Q3: Could you send your engineer to my country, to start the machine?
Surely, we have experience technical engineer for oversea service, they would help you install machine, training your workers.
Q4. Are we a factory or trading company?
We are a real factory in Ningbo and we are one of the leader of high-speed injection molding
machine in China.
Q5. Can we print client's logo?
We can customize thin wall injection molding machines for customers according. to the characteristics
of each customer, and provide overall solutions.
Q6. How can you more info about injection molding machine production processes?
We have a factory product food containers inside of ONGO factory. Here you can find out how
ONGO machine product and how food containers are produced.
Q7.What quote do you offer?
EXW/FOB / CIF and others ways according to your needs. When the quality is same, our price can be
more competitive.
