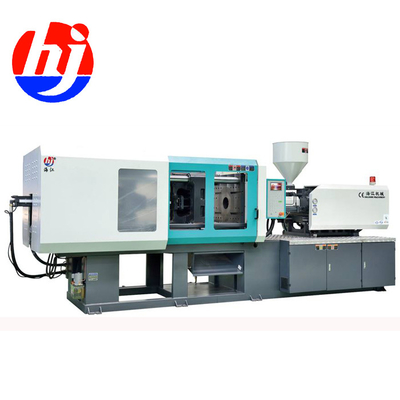

PLC control horizontal fenoplast bakelite injection molding machine cook handle mold cost for sale

1 Set
MOQ
$21,000.00(1 - 2 Sets) $20,900.00(3 - 4 Sets) $20,800.00(>=5 Sets)
prezzo
PLC control horizontal fenoplast bakelite injection molding machine cook handle mold cost for sale
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Plastic Processed: bakelite
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 420 mm
Distance between Tie Bars(Height)(mm): 420 mm
Ejector Stroke(mm): 120 mm
Ejector Force(kN): 33 kN
Theoretical Shot Volume(cm³): 263 cm³
Injection Rate (g/s): 105 g/s
Machine Type: Hydraulic
Injection Weight (g): 250 g
Screw Speed (rpm): 1 rpm
Screw diameter (mm): 42 mm
Weight (KG): 4200
Type: Injection Blow Molding
Place of Origin: Zhejiang, China
Open Stroke(mm): 380 mm
Model Number: HJF140
Marca: HAIJIA
Power (kW): 12 kW
Warranty: 1.5 years
Key Selling Points: Automatic
Applicable Industries: Hotels, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location: Russia, Algeria
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1.5 years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
Plastic Type: Thermoset
Automatic: YES
After-sales Service Provided: Engineers available to service machinery overseas, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
Opening Stroke: 380mm
Injection Rate: 0-220rpm
Injection Weight: 250g
Power(W): 12000
Clamping Force (kN): 1400
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Russia, Algeria
Certificazione: ISO9001
Informazioni di base
Place of Origin: Zhejiang, China
Marca: HAIJIA
Certificazione: ISO9001
Model Number: HJF140
Termini di pagamento e spedizione
Packaging Details: Plastic film, wood pad , anti-shocked ironless chain, plastic toy making machine
Supply Ability: 50 Set/Sets per Month
Descrizione di prodotto

plc control bakelite injection molding machine cook handle mould manufacturers cost in China

We supply all kinds of injection molding machines from 25T to 3000T, including color chips making machines,energy saving injection molding machines, gears making machines, dual clear color injection molding machine bakelite injection molding machines, PET preform injection molding machines, Fixed pump and variable pump injection molding machines, PVC fitting injection molding machines and etc

1.Ceramic heating for Injection molding machine

 Real photo for Injection Molding Machine,It is in stock.25 days,we can arrange shipment after order confirmed.

 Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable





Parameter Unit HJF140
Screw diameter mm A B C
38 42 45
Screw I/D ratio L/D 22.1 21.6 19.5
shot volumn (theoretical) Cm3 193 227 278
injection weight(PS) g 176 206 252
injection rate g/s 94 105 135
injection pressure Mpa 205 159 140
screw speed r/min 0~220
clamp force KN 1400
opening stroke mm 380
space between tie bars (W*H) mm 420*420
max mould height mm 450
min mould height mm 170
ejector stroke mm 120
ejector force KN 33
ejector number PC 5
max pump pressure Mpa 16
pump motor power KW 13
heating power KW 7.2
machine dimension M 4.5*1.2*1.7
machine weight T 4.2
oil tank capacity L 230

  2.The products made by injection molding machine

3.Auxiliary Equipment for Injection Molding Machines

Auto loader,Chiller,Crusher,Cooling Tower,Mixer,Hopper Dryer,water pump,robot, dehumidifier etc.if you need any other equipment,please feel freely contact with us.Thanks very much.
Click here to send us a message.

4.Key Components on Haijia Injection molding machines
Clamping unit,injection unit,electric system,valves,color screen,T slot platen

Techmation controller etc.

Click here to send us a message.

5.Workshop of Injection Molding Machines
CNC Drilling machine, Boring machine,lathe, Grinding machine etc. Welcome you to got to visit our factory.

Click here to send us a message.



6. Haijiang attend the Chinaplas exhibition

Every year,we will attend the plas show in the world. Once you get to chinaplas,please call us. we can meeting on our booth.
Click here to send us a message.

  7.Quality Control for injection Molding Machines
Our factory photos, hope can let you know more about us. standard factory construction.We have quality department. every machine before sending out,must be inspect by 5 step.Try to make sure no problem after machine get to customer's workshop.
Click here to send us a message.

8.Haijiang Culture
Make our stuff feel happy,let them find a feeling like stay at home.it is our job,every year,we will have activies,touring,c competition, Mountain climbing.Here,we are big family.we hope each other,make happy each other.we are team,we are family.
Click here to send us a message.



 9.CE ,ISO9001-2020 and SGS Certificate for Injection Molding Machine



  You are USA people or European people or Africa, no problem. we can offer sending the machine to you. because we have CE,ISO9001 ect.

Click here to send us a message.



FAQ
Q1. What is the warranty for the injection molding machine

A1:Total 18 month,Included machine platen,base,injection unit,clamping unit.
Q2:Can you sending engineer to oversea install machine and trainning customer's workers

A1: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free.After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual Tool box,Lubricate Oil,Sealing,Filter etc.
Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you.
