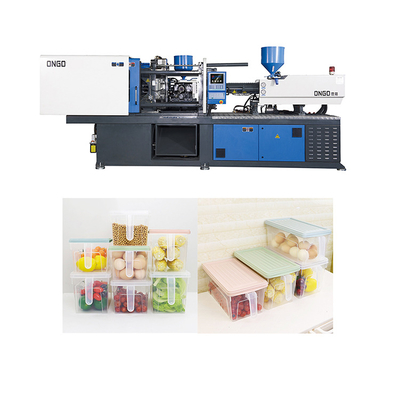

Horizontal ONGO 500Ton 530 Ton Servo Energy Saving Plastic Storage Box Making Injection Machine

1.0 Sets
MOQ
Horizontal ONGO 500Ton 530 Ton Servo Energy Saving Plastic Storage Box Making Injection Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Plastic Processed: PP, ABS, PPR, PA, HDPE/PP
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 820 mm
Distance between Tie Bars(Height)(mm): 820 mm
Ejector Stroke(mm): 230 mm
Ejector Force(kN): 150 kN
Theoretical Shot Volume(cm³): 2608 cm³
Injection Rate (g/s): 560 g/s
Machine Type: Hydraulic
Injection Weight (g): 2373 g
Screw diameter (mm): 90 mm
Distance between Tie Bars: 820*820mm
Weight (KG): 20000
Type: Tube Shoulder Injection
Place of Origin: China
Open Stroke(mm): 770 mm
Model Number: Z530
Marca: ONGO
Power (kW): 112 kW
Warranty: 3 years
Key Selling Points: Multifunctional
Applicable Industries: Hotels, Building Material Shops, Home Use, Food & Beverage Shops
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: other
Injection Pressure: 191Mpa
Screw Speed: 130 Rpm
Max.Mould Height: 810mm
Min.Mould Height: 330mm
Machine Dimension(L*W*H): 8.82*2.05*2.82M
Plastic Type: Thermoplastic
Clamping Force (kN): 5300 kN
Automatic: Yes
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Online support
After Warranty Service: Field maintenance and repair service
Local Service Location: None
Certificazione: ISO
Informazioni di base
Place of Origin: China
Marca: ONGO
Certificazione: ISO
Model Number: Z530
Termini di pagamento e spedizione
Packaging Details: Accept any packaging
Supply Ability: 200 Set/Sets per Month
Descrizione di prodotto
Buying Guides

Related Products
Product Description
ITEM Unit Z530
INJECTION UNIT A B C D
Screw Diameter mm 75 80 85 90
Shot Volume(Theoretical) cm^3 1811 2061 2326 2608
Injection Weight(Ps) g 1648 1875 2117 2373
Injection Rate g/s 386 442 499 560
Injection Pressure MPa 191 168 148 132
Screw Speed rpm 130
CLAMPING UNIT
Clamping Force kN 5300
Open Stroke mm 770
Space Between Tie Bars(W*H) mm 820*820
Max.Mould Height mm 810
Min.Mould Height mm 330
Ejector Stroke mm 230
Ejector Force kN 150
OTHERS
Max.Pump Pressure MPa 16
Pump Motor Power(Servo) Kw 63
Heating Power Kw 32.6
Machine Dimension(L*W*H) M 8.52*2.05*2.82
Oiltank Cubage L 900
Machine Weight T 20

Applicable Industry

Company Information
Certifications

Contact Us
FAQ

1. What's our minimum order quantity ?

We have no limits about MOQ, we can sell product to you even you just want 1 piece.

2. What detailed informations do we need if you want to order our procduct ?

Product pictures with measurments or drawings, sample best, product weight, material, cavities

3. Any discount?

Yes. For larger quantities, we will give you some discount.

4. Have after-sale service?

Yes, please kindly contact us at any time.

5. Are we a factory or trading company?

We are a real factory in Ningbo and we are one of the leader of high-speed injection molding machine in China.

6. Can we print client's logo?

Yes, we can do that.

7. How can you more info about injection molding machine production processess?

We have a factory product food containers inside of ONGO factory. Here you can find out how ONGO machine product and how food containers are produced.

8.What quote do you offer?

EXW/FOB / CIF and others ways according to your needs. When the quality is same, our price can be more competitive.
