Casa /Prodotti/macchina di formatura orizzontale/360 Ton Plastic Horizontal ONGO Making Maker Preform Machine Plastic Injection Molding Machine

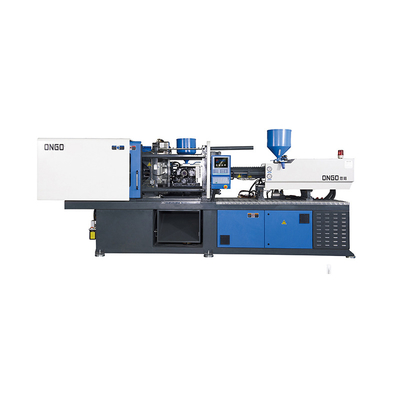

360 Ton Plastic Horizontal ONGO Making Maker Preform Machine Plastic Injection Molding Machine

1 Set
MOQ
$59,700.00(1 - 4 Sets) $56,692.00(>=5 Sets)
prezzo
360 Ton Plastic Horizontal ONGO Making Maker Preform Machine Plastic Injection Molding Machine
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Plastic Processed: PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, PE/PP, Polylactic Acid
Condition: New
Style: Horizontal
Distance between Tie Bars(Width)(mm): 670mm
Distance between Tie Bars(Height)(mm): 670mm
Mold Height(mm): 250 - 720 mm
Ejector Stroke(mm): 160 mm
Ejector Force(kN): 70 kN
Theoretical Shot Volume(cm³): 1480 cm³
Injection Rate (g/s): 422 g/s
Machine Type: Hydraulic
Injection Weight (g): 1349 g
Screw Speed (rpm): 185 - 190 rpm
Screw diameter (mm): 75 mm
Screw L/D Ratio: 19
Distance between Tie Bars: 670*670 mm
Weight (KG): 125000
Type: Preform Injection
Place of Origin: China
Open Stroke(mm): 660 mm
Model Number: ZF360
Marca: ONGO
Power (kW): 82.3 kW
Warranty: 3 years
Key Selling Points: Multifunctional
Applicable Industries: Hotels, Building Material Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Printing Shops, Food & Beverage Shops, Other, Advertising Company
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Other
Product name: Fruit box injection molding machine
oiltank cubage: 620L
Max mould height: 750mm
Min mold height: 250mm
Machine dimension(L*W*H): 7.21*1.9*2.34M
Plastic Type: Thermoplastic
Automatic: Yes
Clamping Force (kN): 3600
Keyword: plastic injection molding machine
After-sales Service Provided: Video technical support, Field installation, commissioning and training, Online support
After Warranty Service: Video technical support, Online support
Local Service Location: None
Certificazione: ISO
Informazioni di base
Place of Origin: China
Marca: ONGO
Certificazione: ISO
Model Number: ZF360
Termini di pagamento e spedizione
Packaging Details: Accept any packaging
Supply Ability: 200 Set/Sets per Month
Descrizione di prodotto
Product Paramenters
ITEM
Unit
ZF360
INJECTIONUNIT
A
B
C
Screw Diameter
mm
65
70
75
Shot Volume(Theoretical)
cm^3
1112
1289
1480
Injection Weight(Ps)
g
1012
1175
1349
Injection Rate
g/s
337
368
422
Injection Pressure
MPa
195
170
148
Screw Speed
rpm
190
190
190
CLAMPING UNIT
Clamping Force
kN
3600
Open Stroke
mm
660
Space Between Tie Bars(W*H)
mm
670*670
Max Mould Height
mm
720
Min Mould Height
mm
250
Ejector Stroke
mm
160
Ejector Force
kN
70
OTHERS

Max.Pump Pressure
MPa
16
Pump Motor Power(Servo)
Kw
56
Heating Power
Kw
26.3
Machine Dimension(L*W*H)
M
7.21*1.9*2.34
Oiltank Cubage
L
620
Machine Weight
T
12.5
Products Description
ONGO 110 TON- 2900 TON plastic injection molding machine
We can customize thin wall injection molding machines for customers according to the characteristics of each customer, and provide overall solutions，We can solve the problem for you at different injection molding industry
Our products can produce any parts, if you have any questions, please click to contact us
1.INJECTION PREPLASTICATION SEAT WITH OIL COPPER SLEEVE
The preplastication seat reciprocates once in every injection motion. Normal non-automatic lubrication in injection unit can't offer lubrication support to this important motion. Thus, we use oil copper sleeve to make sure that injection reciprocates well.Even without lubricating oil support, it can also slide excellently.Considering cost, however, some materials without oil always cause harmful effect to injection accuracy after a period of time
2.CLOSED BASE STRUCTURE
Compared with opened structure, the closed base structure is neater and protects components better to avoid any damage by crash. It also improves operation safety Automatic mould adjustment device is convenient for customer operation.
3.SEALED STRUCTURE WITH CONE SURFACE
In line with famous international brands, sealed structure with cone surface in connection position of high pressure oil pipe improves sealing reliability greatly
4.SPRAY PLASTIC IN OIL TANK
Spray plastic in oil tank makes it clean, and what's more, it prevents oil tank to be corroded for long time, extends hydraulic oil service time effectively, and decreases customer's use-cost
Under the control of ISO 9001 management system, from material selection to processing, production and assembling, each step is inspected strictly.In order to reach 100% eligible rate, the machine shall be given more than 72 h-continuous test in performance reliability.
Our services
1.BEFORE SERVICE PURPOSE
Considering reasonable, standard and saving cost scheme for customers, we offer all-around service and technical support to help them choose correct machine
2.SALES SERVICE
We will provide customer instructions on water arc elasticity connection of the machine, free new machine commissioning, technical training and machine operation Training.
3.AFTER-SALES SERVICE
Technical support and product maintenance We offer subsequent training and technical consultation, can even send service engineer to solve the problem at the customer s factory. After upgrading our product, we will give priority to update the sold machines according to customer' s requirement
Company Profile
FAQ
Q1. What's our minimum order quantity ?
We have no limits about MOQ, we can sell product to you even you just want 1 piece.
Q2. What detailed information do we need if you want to order our product ?
Product pictures with measurements or drawings, sample best, product weight, material, cavities
Q3: Could you send your engineer to my country, to start the machine?
Surely, we have experience technical engineer for oversea service, they would help you install machine, training your workers.
Q4. Are we a factory or trading company?
We are a real factory in Ningbo and we are one of the leader of high-speed injection molding
machine in China.
Q5. Can we print client's logo?
We can customize thin wall injection molding machines for customers according. to the characteristics
of each customer, and provide overall solutions.
Q6. How can you more info about injection molding machine production processes?
We have a factory product food containers inside of ONGO factory. Here you can find out how
ONGO machine product and how food containers are produced.
Q7.What quote do you offer?
EXW/FOB / CIF and others ways according to your needs. When the quality is same, our price can be
more competitive.
